Heated Seat and Lumbar Cushion with Dual-Zone Warmth
A seat cushion is sat on for an hour at a time, which is a different problem from a pad that is laid on a surface. This build treats the strap as a structural part, sets a separate zone map for the back and the seat, and specifies a foam grade against warmed load rather than room-temperature firmness.
- Separate zone maps for the back panel and the seat panel, not one map for both
- Foam grade approved on a warmed loaded test rather than a room-temperature squeeze
- Strap tension, anchor points and bar-tack reinforcement written into the tech pack
- Element kept out of the seat-bone load zone and off the fold at the seat-to-back transition
- Removable cover for washing, with the foam core and element staying with the structure
MOQ from 100 units per SKU · Sample in 3–5 days · Bulk ready to ship in 7–10 days · Reply within one hour
Product attributes
| Format | L-shaped seat and lumbar cushion for chairs, car seats and wheelchairs |
|---|---|
| Structure | Moulded foam core with an upholstered removable cover; seat panel and back panel formed as one unit |
| Foam grade | Selected against a warmed loaded test; the grade is agreed on the sample rather than by name |
| Cover fabric | Woven upholstery face with a quilt grid; other faces and colours on request |
| Back zone | Element routed across the lumbar area; start and end points fixed on the back zone map |
| Seat zone | Element routed around the seat-bone load zone rather than under it |
| Zone control | Single control with both zones, or separate control per zone; layout agreed per model |
| Heat settings | Step count confirmed per model, with the warmth of each step described in the setting table |
| Timer | Timed shut-off as standard; window set per model and stated on the label |
| Overheat protection | Active sensor control plus an independent non-resettable thermal cut-out |
| Strap | Elastic strap with a buckle, tension and anchor positions specified; bar-tack reinforcement at both ends |
| Buckle placement | Positioned clear of the seated user's contact area |
| Element fold radius | Minimum bend radius specified at the seat-to-back transition, where the cover folds |
| Cable exit | Exit faces the back of the chair; cord length set so it does not loop at an armrest or wheel |
| Controller | Inline control reachable while seated without leaning forward |
| Power | Mains or USB input depending on model; voltage per destination market and pack format |
| Washability | Cover removes for washing; the foam core and element stay with the structure |
| Care label | Destination-market language covering cover removal, wash programme and drying |
| Sizes | Two sizes covering most task chairs, car seats and wheelchairs; custom dimensions to your brief |
| Seat depth | Specified against the chairs the buyer sells into rather than a single universal size |
| Colour | Custom fabric and strap colours; grey references |
| Branding | Woven labels, heat-transfer marks and retail packaging |
| Packing | Compression bag or retail carton; compressed height confirmed on the sample |
| Batch traceability | Batch or lot marking linked to foam, element and cover records |
| Change control | No foam grade, element or firmware substitution without re-assessment and written approval |
| Testing & documentation | Assessment supported on the finished cushion for the destination market's scope; the applicable marking set is confirmed per order and per market |
| OEM / ODM | Custom foam grade, zone maps, strap system, control layout, branding and retail packaging |
| MOQ | From 100 units per SKU |
| Sample lead time | 3–5 days |
| Bulk lead time | 7–10 days |
Final specifications are confirmed on the quotation. Foam grade, zone maps, strap system, step count and packing format are set per model and market.
Detail images
Click any image to open the full-size file.

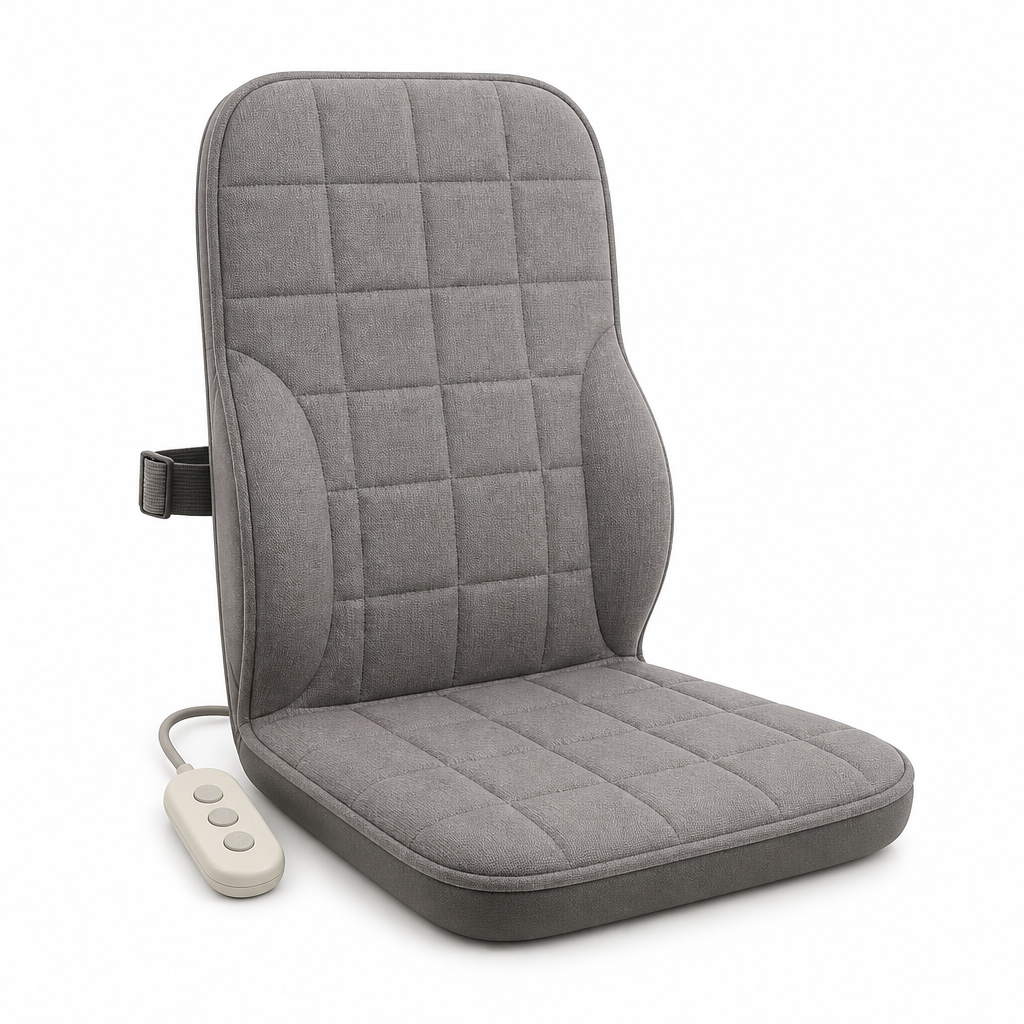

Full view — seat panel, lumbar backrest and the inline controller.

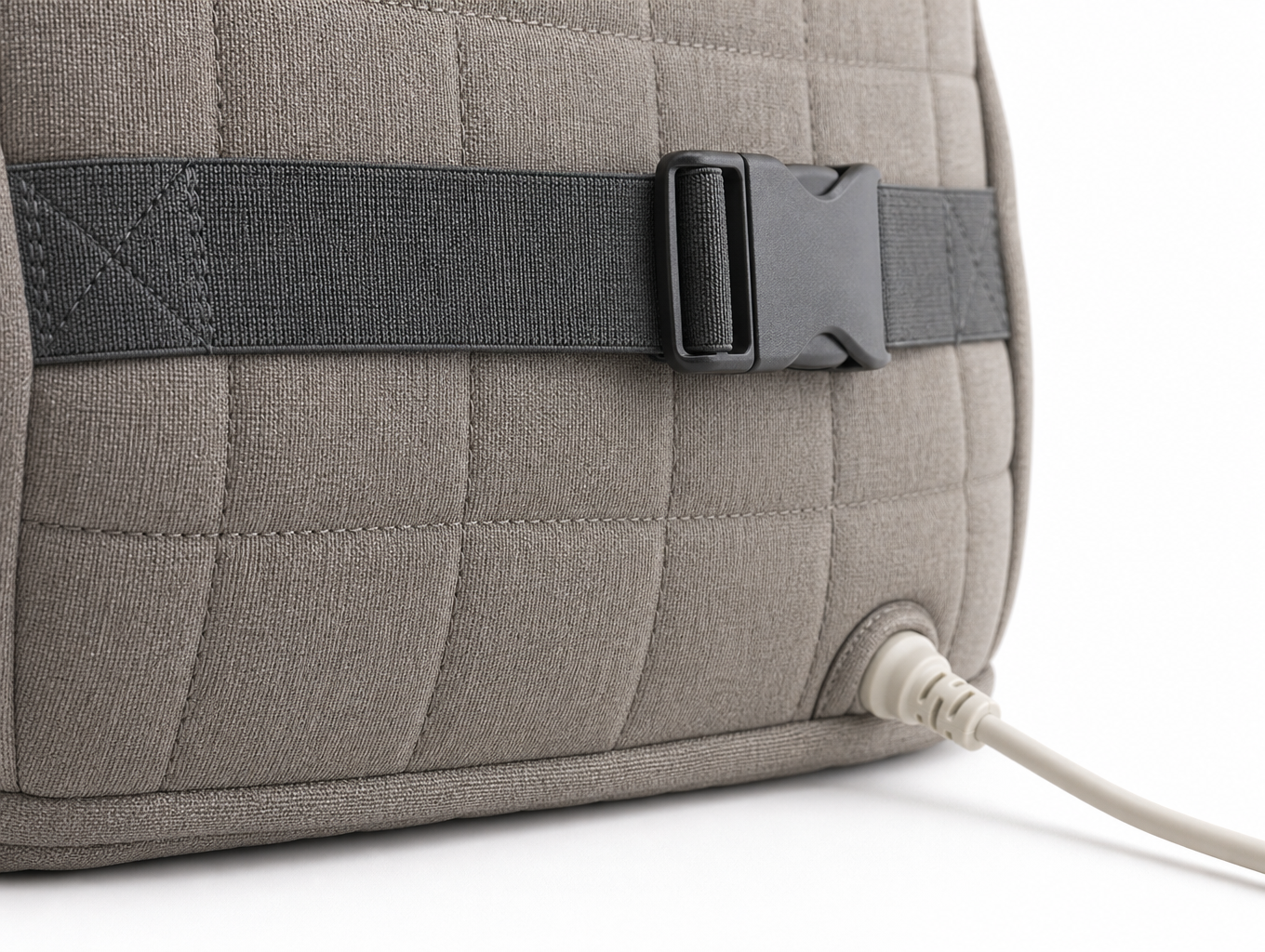

Detail — the elastic strap, its buckle and the bound cable exit on the rear panel.
Typical uses
Pair it with our heated pillows and heated throws for a complete seating and living-range programme under one private label. For the reasoning behind foam choice and strap load, read Heated Seat and Lumbar Cushions: Strap Tension, Foam and Chair Fit.
More heated products
Specifying a heated seat cushion?
Send the chair type, the seat and back dimensions and your market. We will come back with a foam and strap proposal, a two-zone map and a sampling schedule within one hour.
