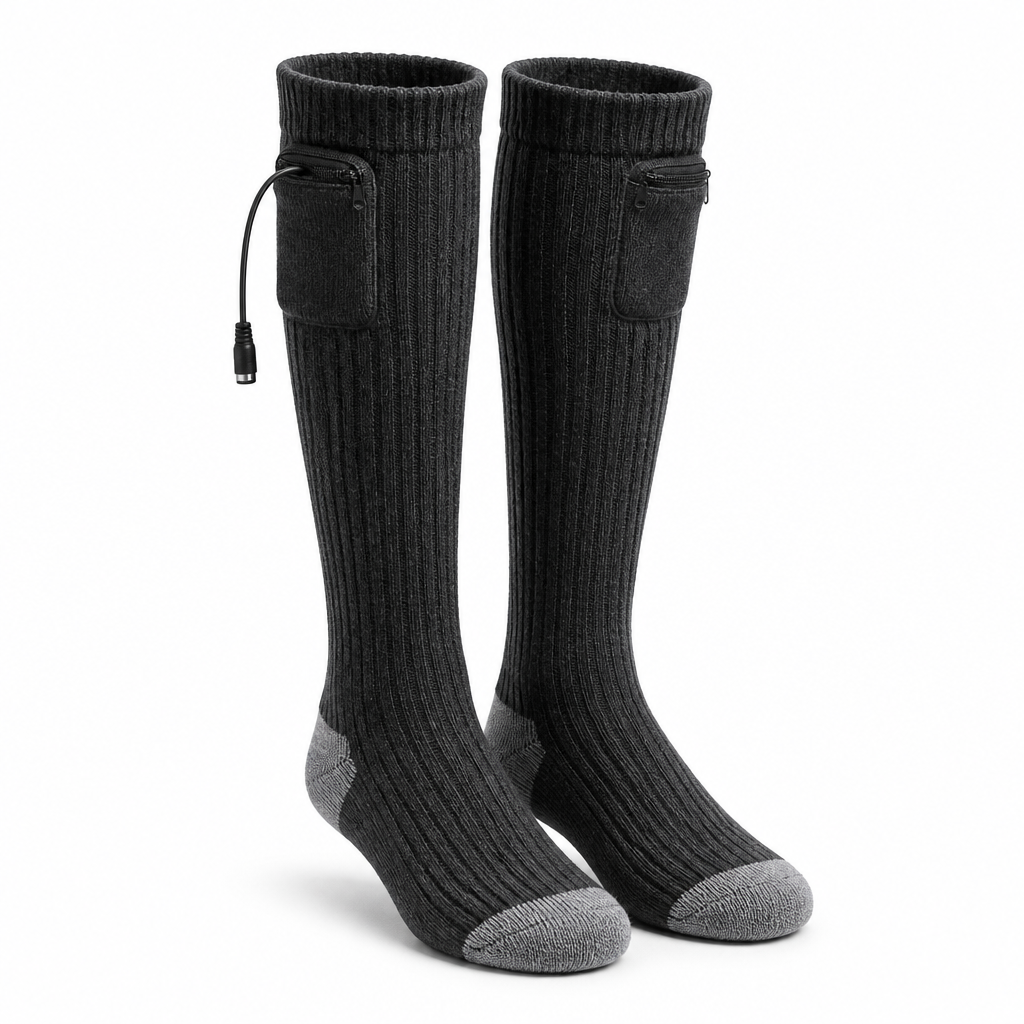

Over-the-Calf Heated Boot Socks with Dual Battery Pouches
Tall socks fail at the cuff long before the element does. This pair puts one zip pouch on each calf below the rib, runs the lead down the side so it bends in a single plane, and gives the buyer a connector they can detach before washing.

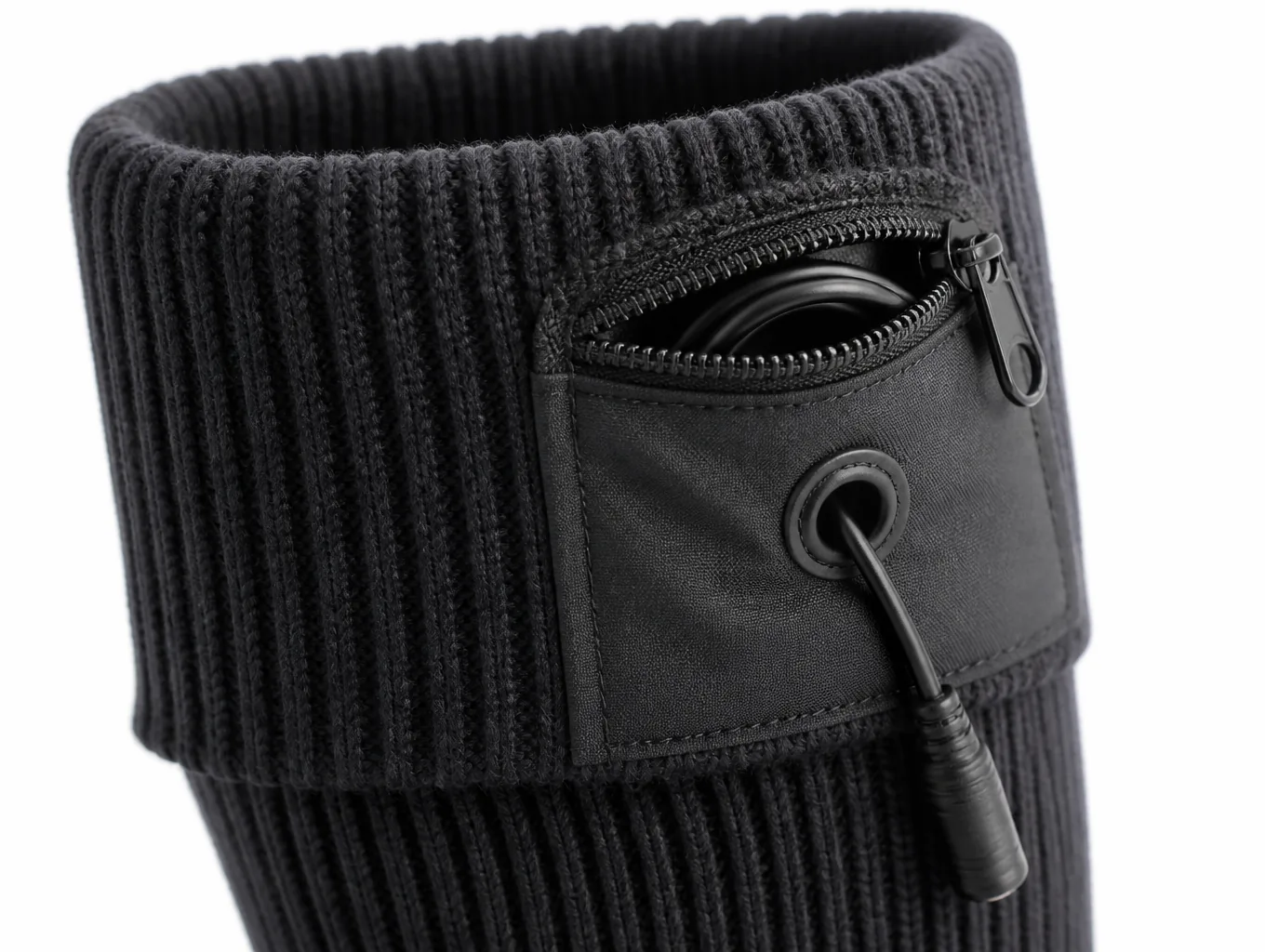

- One zip pouch per calf, positioned below the rib so the cuff keeps recovering
- Pouch height measured from the heel, so the size run keeps the pack in one place against the boot
- Low-stretch pouch panel, flatlock stitched on all four sides rather than tacked at the corners
- Lead routed down the side of the calf and into the sole channel from the outer edge
- Sole channel stopping short of the heel — the highest-wear point is left clear
- Moulded, rated connector detached before washing, described as a wearing part
- Reinforced heel and toe, with an over-the-calf shaft for tall boots
- Private label with your knit label, care label and packaging
Sampling 3–5 days · Bulk ready to ship in 7–10 days · MOQ from 100 units · Reply within one hour
Request a QuoteProduct attributes
Every field below can be adjusted to your market. Fields marked as an optional configuration are confirmed for your program on the quotation.
| Product type | Over-the-calf heated boot socks, pair |
|---|---|
| Category | Heated socks |
| Yarn | Made to your yarn and blend requirement |
| Knit structure | Ribbed shaft with a flat-knit foot and a shaped heel |
| Shaft length | Over-the-calf; finished length confirmed on the sample |
| Cuff | Ribbed cuff kept free of stitching so it recovers after wear |
| Battery pouch | One zip pouch per calf, low-stretch panel, flatlock stitched on four sides |
| Pouch position | Measured as a fixed distance from the heel, not from the cuff |
| Pouch sizing | Cut to the pack rather than to a nominal dimension — confirmed on the quotation |
| Heating element | Flat ribbon element in a continuous stitched channel |
| Element layout | Sole channel stopping short of the heel |
| Heated area | Stated as a proportion of the sole footprint, confirmed on the sample |
| Lead route | Down the side of the calf, entering the sole channel from the outer edge |
| Bend plane | Single-plane routing; bend radius recorded on the tech pack drawing |
| Heat settings | Setting count confirmed on the quotation |
| Runtime | Stated separately at low, medium and high; ambient temperature declared |
| Warm-up time | Measured on the sample, not estimated |
| Control | Cuff button or inline controller — optional configuration |
| Battery type | Removable rechargeable pack, one per sock — specification confirmed on the quotation |
| Charging | Charging connector and charge time confirmed on the quotation |
| Connector | Moulded, rated connector detached before washing; stated cycle count |
| Cord entry | Bound opening at the pouch edge with strain relief |
| Washability | Machine washable with controller and battery detached |
| Maximum wash cycles | Rated figure confirmed on the quotation |
| Drying | Low-temperature drying; limits matched to the yarn |
| Reinforcement | Reinforced heel and toe panel |
| Sizes | Made to your size range |
| Colour | Made to your colour standard |
| Branding | Private label — your knit label, care label and packaging |
| Packaging | Optional configuration to your artwork |
| MOQ | From 100 units per SKU |
| Sampling | 3–5 days |
| Bulk lead time | 7–10 days |
| Certification | Destination-market certification quoted as a project cost |
| Origin | Made in Shaanxi, China |
Final specifications are confirmed on the quotation.
Detail images
Click any image to open the full-size file.
Typical uses
Ski and snowboard boots
An over-the-calf shaft that stays put under a stiff boot shell, with the pouch clear of the boot cuff.
Outdoor work in tall boots
Two packs, one per leg, so the weight is even across a long shift.
Fishing and hunting
A quiet zip pouch, a detachable connector and a lead that does not cross the heel.
Retail gifting ranges
A tall silhouette with your knit label and packaging artwork for seasonal programs.
Want this sock built to your specification?
Send us your shaft length, boot type and target market. We will come back with a pouch position, a lead route and a sampling plan.
